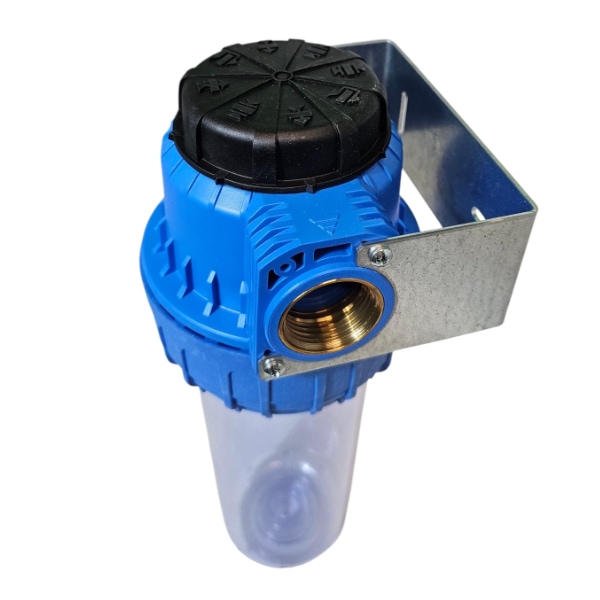

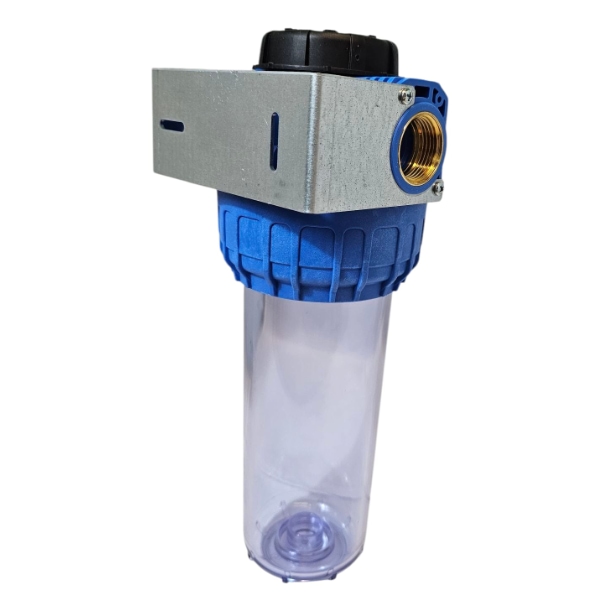

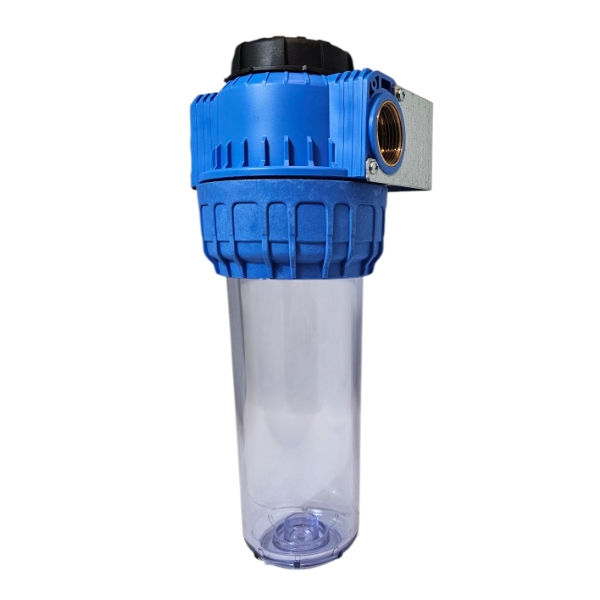

Filter housing with integrated by-pass system, suggested for all drinking water applications, it allows flexible and quick installations. with a selector cap for a simple change between the different functions: filtering, closure and by-pass.
Washable mesh cartridge non included.
Features
– Filter housing with integrated BY-PASS system
– Maximum working pressure : 8bar
– Working temperature: 0°C / 30°C

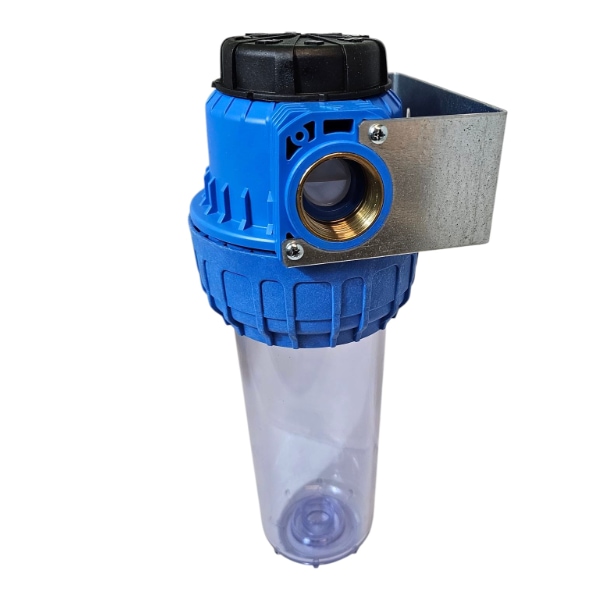

– Connections ¾ or 1” GAS with brass inserts
– Filter head and ring in filled polypropylene
– Bowl in SAN transparent
– Air plug
– By-pass internal selector in POM
Technical data
– Connection: 3/4″ F
– Cartridge Lenght: 9-3/4″
– Heigh: 307 mm
– Width: 133 mm
– Flow rate: 6500 lt/h
