Refrigerator 3-way overcounter water for the production of ambient natural, cold natural and cold sparkling microfiltered water.
The Acqua Top dispenser can operate connected to the water mains by placing an external filter and cylinder or with the tank integrated by inserting the filter and the CO2 cylinder inside the machine.
The strong point of this dispenser is the integrated 5-litre tank which allows it to be used anywhere without the need for installation.

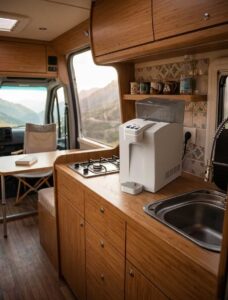

We can take our cooler in a camper, on the road with us or at home without the need to drill holes in the kitchen top to pass with the necessary pipes for installation.

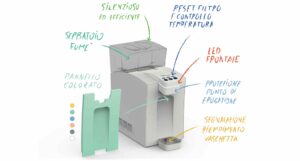

The Acqua Top cooler has a linear, elegant and modern design also thanks to the smoky tank it is equipped with. In addition, the available colored panels make it suitable for any kitchen.
The renewed design and new functions make its use really easy. In fact, all it takes is a button for filter yield and temperature control.
The drip tray signals when it is too full, while the front LED shows the status of the appliance.
Technical characteristics
Carbonator Material: Stainless Steel AISI 316L
Carbonator capacity 3.5
Type of pump: Membrane (booster)
Compressor Type: Alternative
Refrigerant Type: R600a
On-board filter: Activated carbon with silver ions
Filtration degree: 0.5 micron
Machine dimensions in mm (LPH) 236 x 494 x 465
Dry Machine Weight (Kg) 16.5
Power cord length (m) 2

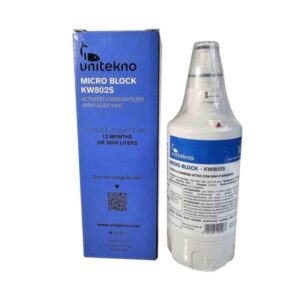

The filter inside the machine is a 0.5 micron carbon block with silver ions
Technical characteristics of the filter
Operating pressure 207-827 kPa (2.0-8.2 bar)
Operating temperature: 1-38°C
Capacity 3600 l
Flow rate: 1.9 lpm
Filtration degree: 0.5 μm
Bacteriostatic medium: silver ions.
This filter must be replaced at least every 12 months.
How to replace the filter:
- Turn the power off and close the main water inlet.
- Turn the filter counterclockwise and pull it out.
- Remove the packaging of the new filter and insert the cartridge.
- Open the main water inlet and turn the power back on
The integrated cylinder inside the Acqua Top is 600gr disposable with M11x1 connections that can be replaced by cylinders like this one
Warning: To reduce the risk of contaminant, do not use with microbiologically unsafe or uncertain quality water without adequate sanification upstream or downstream of the cooler.
To reduce the risk of damage due to water leaks, the user MUST read and follow the User Manual before installing and using the filter. The filter must be replaced: every twelve months, when capacity is reached or if there is a reduction in water flow.
