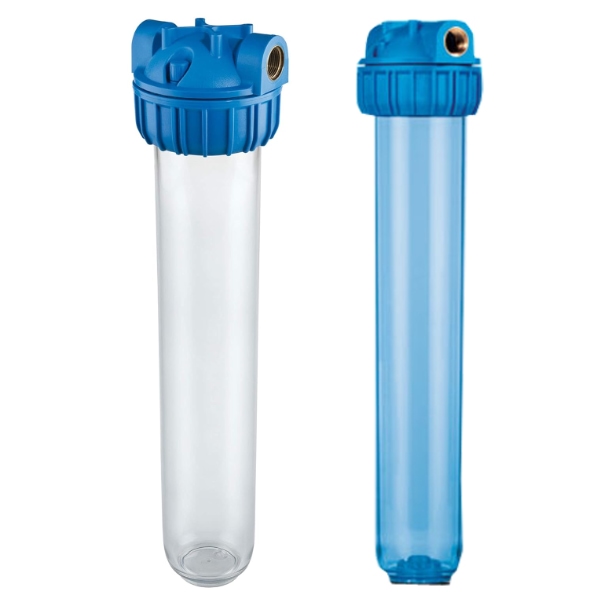

Three pieces standard housing 20″ clear or opaque vessel, in-out 3/4″ or 1″ with wrench and bracket
Filtration and treatment of water with neutral pH and drinking water.
Domestic use: filtration and treatment of drinking water, protection of taps, boilers, washing machines, and other installations.
Technical use: pre-filtration, micro-filtration; protection of pumps, heating systems, softeners, demineralising and chlorine-
removing appliances, reverse osmosis units.
Working conditions
– Max working pressure: 8 BAR
– Max working temperature: 45°C
Specifications
– Non-toxic materials, suitable for drinking water.
– Head and ring nut: reinforced polypropylene.
– Transparent or opaque bowl: SAN.
– O-ring: ETP.
– Breather-valve: body polypropylene, O-ring ETP.
– In/out threads: CW 614 N brass inserts.
– Dimensions in-out 3/4”: 571×133 (A.xL.)
– Dimensions in-out 1”: 577×145 (A.xL.)
