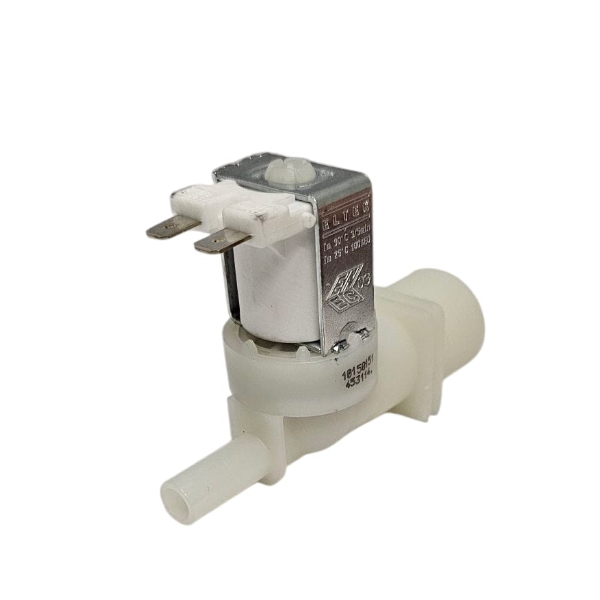

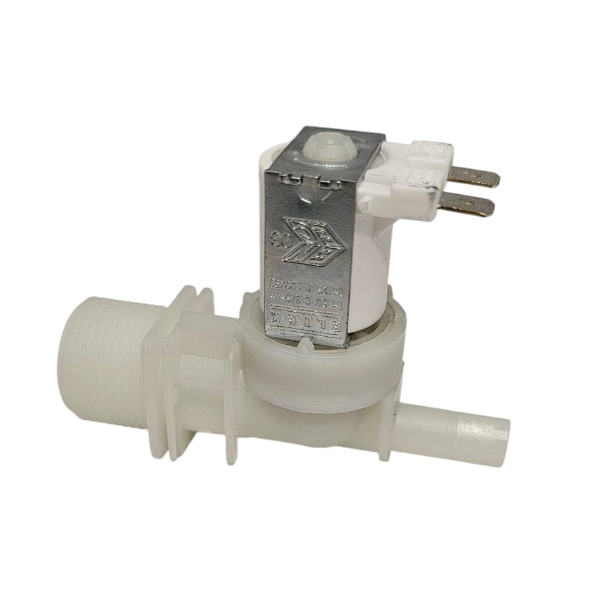

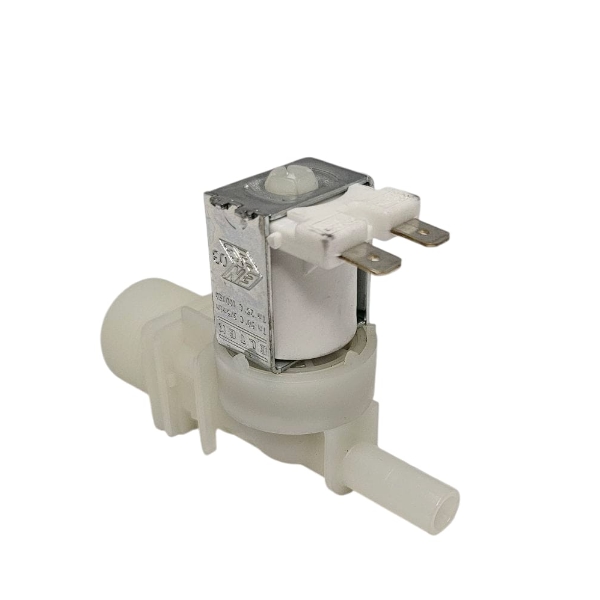

One way solenoid valve 220V.~240V. – 50/60Hz 6VA – OD stem 10mm.
Technical data
– Ambient temperature: 2 °C ÷ 60 °C
– Temperature of fluid: 25 °C ÷ 90 °C
– Operating pressure: 0.02 ÷ 1 MPa (0.2 ÷ 10 bar)
– Flow rate: According to the mounted regulator (2.5 to 8 l/min)
– Resistance to Bursting: > 6 MPa ( > 60 bar ) a 25°C
– Life: 50.000 cycles – 200.000 total litres
