Direct reverse osmosis with refrigeration Edenya RO-ICE ideal for natural water environment, natural cold water and sparkling cold water
The Edenya RO-ICE reverse osmosis system is a cooler with dry cooling without forced ventilation. The system fairing is in galvanized sheet metal to better protect the components. Edenya RO-ICE allows you to independently adjust the desired water temperature and is equipped with a control unit made in Italy and an anti-flooding system. Equipped with compressor 1 8 Ho. and carbonator 2.2 liters, Edenya RO-ICE produces up to 110 l/h of osmotized water thanks to two membranes from 200 GPD made in Italy.
RO-ICE also allows the management of salinity output through the onboard TDS controller.

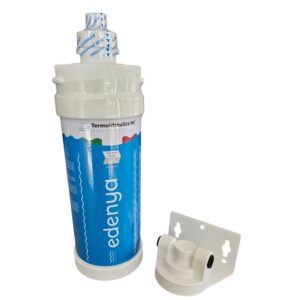

The Edenya AG Small activated carbon filter is positioned outside the machine, with a 0.5 micron filtration grade, integrated non-return valve and silver ions to prevent bacterial proliferation. The filter is changed every 12 months and there is no need to open the machine for maintenance. Just unscrew the filter with bayonet connection from its head and screw the new filter, an operation that does not require special skills and can be done in a few minutes.
The Edenya RO-ICE system can be combined with a dedicated 3 way tap or a 5 way mixer.
Connections:
- Water inlet: 10mm quick coupling
- CO2 input: 6mm quick coupling
- Natural water outlet: 6mm quick coupling
- Natural cold water outlet: 6mm quick coupling
- Cold sparkling water output: 6mm quick coupling
- Clearance: 6mm quick release
Edenya technology for pre-filtration
The Edenya RO-ICE reverse osmosis system with refrigeration has been designed for high performance and a compact design that facilitates maintenance.
Prefiltration is managed by the Edenya AG Small filter with a degree of filtration of 0.5 microns. Thanks to the natural carbon derived from coconuts, the filter is able to break down sediment, mold, algae, rust, chlorine, odors and unwanted flavors.
The large capacity of the Edenya Ag Small filter allows you to achieve a 12-month battery life.
Technical characteristics of the machine:
- Power supply: 220V 50Hz
- Absorption: 200W (in operation motor: from 180W220V 50 Hz)
- Pump: Booster 330 lt/h certified D.M. 174
- Membranes: 2 by 200 GPD TFC (Thin Film Composite)
- Cold water production: 20 l/h (with water inlet at 22°C and outlet at 6°C)
- Osmotized water production: 110 lt/h
- Inlet water pressure: min. 2bar / max. 5 bar
- Rejection rate: 93%
- Max TDS input: 2000 mg/l
- pH water intake: min 3 max 11

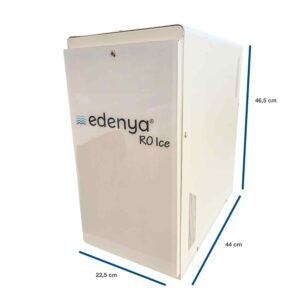

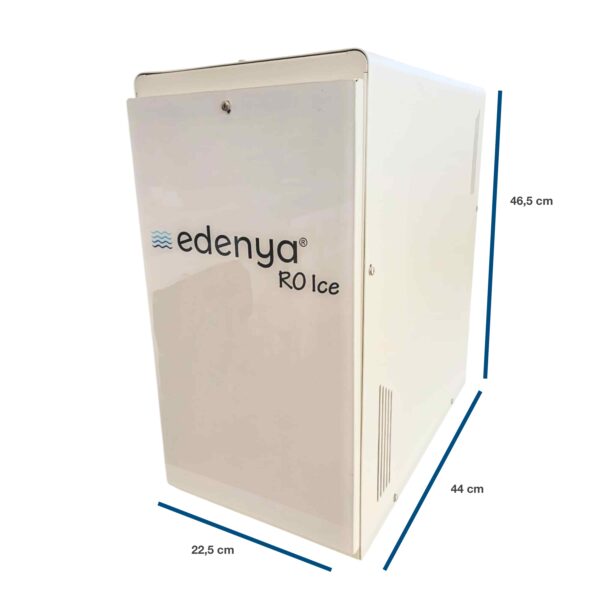

- Dimensions: H 46.5 cm x W 22.5 cm x D 44 cm
- Weight: 25 kg
Included in the package:

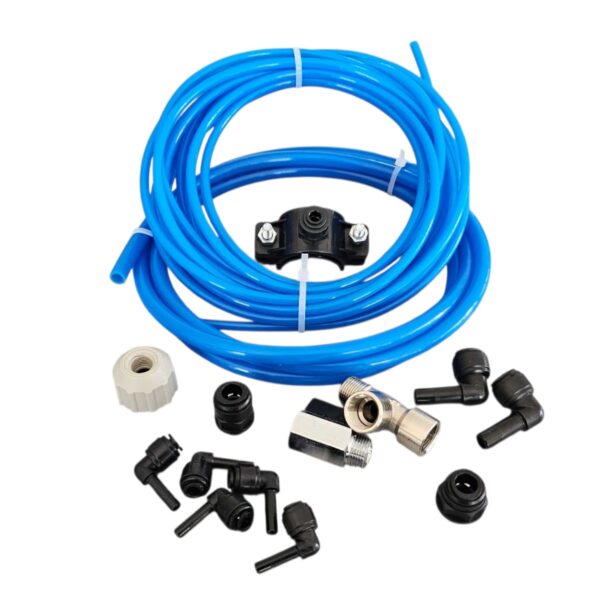

- Installation kit with pipes, fittings and valves
- Power supply cable
- Edenya Ag Small filter
- Edenya head
